FTTx Solutions XPON ONU 1GE 1FE WIFI Plastic Casing Dual Band

Product Categories
HiOSO Technology Co., Ltd.
Contact Now

FTTx Solutions XPON ONU 1GE 1FE WIFI Plastic Casing Dual Band

Brand Name : HiOSO

Model Number : XPON 1G1F+WIFI

Certification : CE, RoHS, CCC

Place of Origin : China, Guang dong

MOQ : 1

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, D/P

Supply Ability : 5000pcs/month

Delivery Time : 3-11 working days

Packaging Details : Standard packing

Product namee : XPON Wifi ONU

Colour : White

Material : Plastic casing

Ports : XPON 1G1F+WIFI

Rate : 10/100/1000Mbps

Type : FTTx Solutions

Modulation type : DSSS,CCK and OFDM

Channel : 13

Contact Now

XPON 1G1F+WIFI

Specification

Technical Item Details
PON interface

1 G/EPON port(EPON PX20+ and GPON Class B+)

Upstream: 1310nm; Downstream: 1490nm

SC/UPC connector

Receiving sensitivity: ≤-27dBm

Transmitting optical power: 0~+4dBm

Transmission distance: 20KM
LAN interface 1x10/100/1000Mbps and 1x10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector
WIFI Interface

Compliant with IEEE802.11b/g/n

Operating frequency: 2.400-2.4835GHz

support MIMO, rate up to 300Mbps

2T2R,2 external antenna 5dBi

Support: Multiple SSID

Channel:13

Modulation type: DSSS,CCK and OFDM

Encoding scheme: BPSK,QPSK,16QAM and 64QAM
LED 7 LED, For Status of POWER, LOS, PON, LAN1~LAN2, WIFI, WPS
Push-Button 4, for Function of Power on/off, Reset, WPS, WIFI
Operating condition

Temperature : 0℃～+50℃

Humidity :10%～90%(non-condensing)
Storing Condition

Temperature : -40℃～+60℃

Humidity :10%～90%(non-condensing)
Power supply DC 12V/1A
Power Consumption <6W
Net Weight <0.4kg

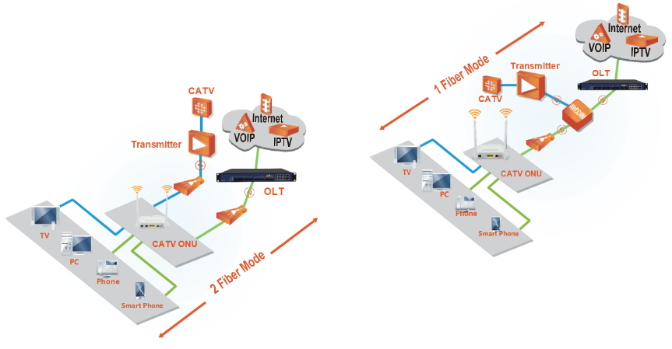

Application

  • Typical Solution:FTTO(Office), FTTB(Building),FTTH(Home)
  • Typical Service:Broadband Internet access, IPTV etc.

FTTx Solutions XPON ONU 1GE 1FE WIFI Plastic Casing Dual Band

Feature

  • Supports Dual Mode (can access GPON/EPON OLT).
  • Supports GPON G.984/G.988 standards
  • Support 802.11n WIFI (2x2 MIMO) function
  • Support NAT, Firewall function.
  • Support Flow & Storm Control , Loop Detection, Port Forwarding and Loop-Detect
  • Support port mode of VLAN configuration
  • Support LAN IP and DHCP Server configuration
  • Support TR069 Remote Configuration and WEB Management
  • Support Route PPPoE/IPoE/DHCP/Static IP and Bridge mixed mode
  • Support IPv4/IPv6 dual stack
  • Support IGMP transparent/snooping/proxy
  • In compliant with IEEE802.3ah standard
  • Compatible with popular OLT (HW, ZTE, FiberHome...)

FTTx Solutions XPON ONU 1GE 1FE WIFI Plastic Casing Dual Band

FTTx Solutions XPON ONU 1GE 1FE WIFI Plastic Casing Dual Band

Datasheet Download:9602C XPON 1G1F+WIFI-v7.pdf
